Electrodes

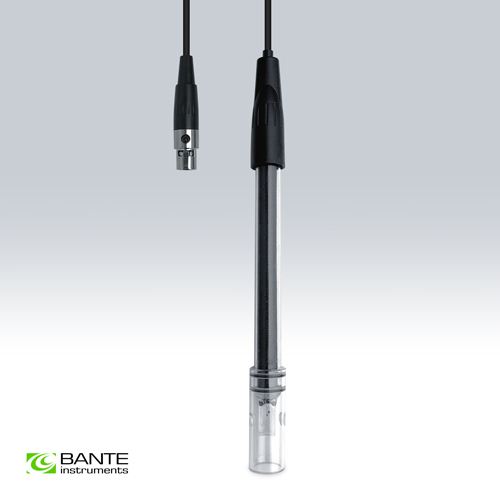

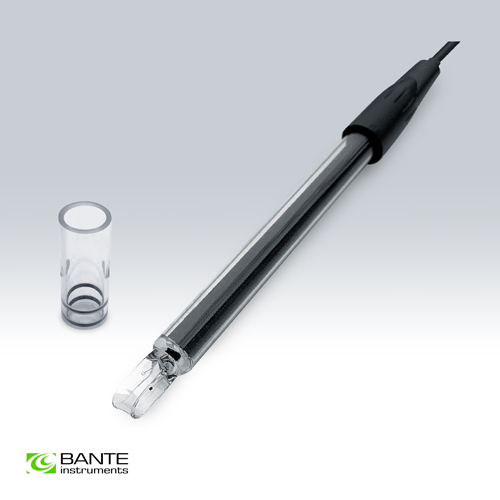

CON-10 Conductivity Electrode
Platinum conductivity electrode, suitable for measuring seawater and high conductivity liquids.
Features:
? High-purity platinum conductivity cell ensures reliable measurement results
? Transparent protective shield prevents accidental damage to the sensor
? Cell constant (K) = 10 cm?1
Model | CON-10 | |
Range | 1 to 200 mS/cm | |
Operating Temperature | 0 to 80°C / 32 to 176°F | |
Material | Platinum sensor, glass body | |
Cell Constant | K=10 | |
Connector | 6-pin mini-DIN | |
Cable Length | 1 m | |
Dimensions | 150 × 12(?) mm | |
Weight | 50 g |
Ordering Code | Electrode Includes |
CON-10 | --- |
| Items | Description |
| Conductivity Standard Solution | For calibrating conductivity electrode |
Ordering Code | Dimensions and Weights |
CON-10 | 23 × 10 × 5 cm, 0.1 kg |
